FMVSS
No. 108
|
|
Paragraph
S7.5(b)
specifies that any replaceable bulb headlamp system
shall meet the photometric requirements of the standard
using any light source of the Type intended for use in
such system. Paragraph
S7.7
specifies that each replaceable light source shall be
designed to conform to the design specifications
furnished with respect to it pursuant to part 564.
The table below is a tabulated summation of the entries
for replaceable light sources filed in Docket No. NHTSA
98-3397, pursuant to Part 564, for use in motor vehicles
(except motorcycles), plus some of their major design
characteristics.
|
|
|
Please
Note:
|
|
1.
No other bulb type is allowed if it is not
filed in Docket No. NHTSA 98-3397.
|
|
2.
Each light source has a maximum allowable wattage.
|
|
3.
Each light source specifies the allowable coatings.
|
|
Which
indicate...
|
|

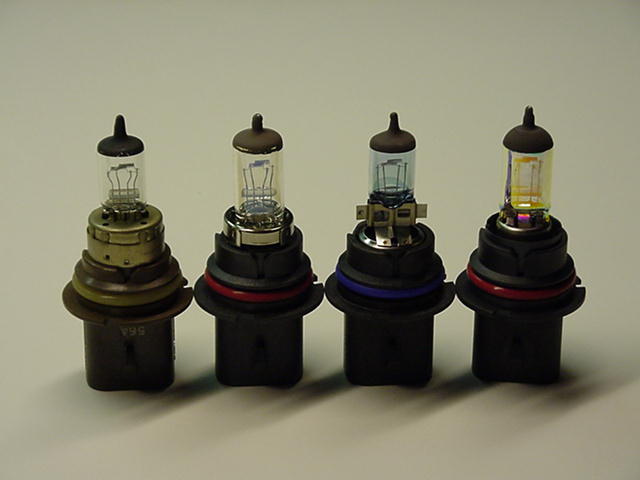

That all of the high power
bulbs, "blue bulbs," and HID conversions
on the market may not be in compliance with the standard
and, therefore, not legal for sale in the U.S.
|
|
|
|
Part 564
Replaceable Light Source
Types
|
|
Allowable
Bulb Types
|
Trade
Name
|
Max.
Watts
|
Luminous
Flux (lm)
|
Coating, filtering,
tinting
|
Remarks
|
|
Primary
|
Alternative
|
|
9500
|
|
9500
|
36.5
|
2800
± 400
|
none
|
HID
|
|
D2R
|
D1R
|
D2R
|
38
|
2800 ±
450
|
Black
stripes.
|
HID
|
D1R
|
D1R
|
2800 ±
450
|
Black
stripes.
|
-->
|
D2S
|
D1S
|
D2S
|
38
|
D2S
|
3200 ±
450
|
none
|
HID
|
|
D1S
|
D1S
|
3200 ±
450
|
none
|
|
H1
|
|
H1
|
65
|
1410
± 210
|
none
|
Single axial
filament
|
|
H3
|
|
H3
|
65
|
1310
± 195
|
none
|
Single transverse
filament
|
|
H7
|
|
H7
|
55.6
|
1350
± 12%
|
Black cap
|
Single axial
filament
|
|
H8
|
|
H8
|
41
|
730
± 110
|
Black cap
|
Single axial
filament
|
|
H9
|
|
H9
|
70
|
2000
± 240
|
none
|
Single axial
filament
|
|
H11
|
|
H11
|
59
|
1250
± 150
|
Black cap
|
Single axial
filament
|
|
HB1
|
|
9004
|
Low Beam
|
50
|
700
± 15%
|
Black cap
|
Dual transverse
filaments
|
|
High Beam
|
70
|
1200
± 15%
|
|
HB2
|
|
9003
|
Low Beam
|
65
|
910
± 10%
|
Black cap
|
Dual axial
filaments
|
|
High Beam
|
72
|
1500
± 10%
|
|
HB3
|
HB3A
|
9005
|
70
|
1700
± 12%
|
none
|
Single axial
filament
|
|
HB3A has straight
base
|
|
HB4
|
HB4A
|
9006
|
60
|
1000
± 15%
|
Black cap
|
Single axial
filament
|
|
HB4A has straight
base
|
|
HB5
|
|
9007
|
Low Beam
|
60
|
1000
± 15%
|
Black cap
|
Dual axial
filament
|
|
High Beam
|
70
|
1350
± 15%
|
|
HIR1
|
|
9011
|
70
|
2300
± 15%
|
Durable infrared
coating
|
Single axial
filament
|
|
HIR2
|
|
9012
|
60
|
1700
± 15%
|
Durable infrared
coating
|
Single axial
filament
|
|
